TL-Dif differential measuring probe

The differential test probe provides galvanic isolation of the oscilloscope channels and is designed to measure the voltage difference between two measurement points, neither of which is grounded. It can be used to connect to the crankshaft position sensor, generator windings, internal circuits of the electronic control unit.

Specifications TL-Dif:

• operating voltage - no more than 60V,
• connector for interchangeable nozzles - "banana" 4mm,
• connection to the oscilloscope - BNC,
• total length - 2.5m
• weight - 0.18 kg.

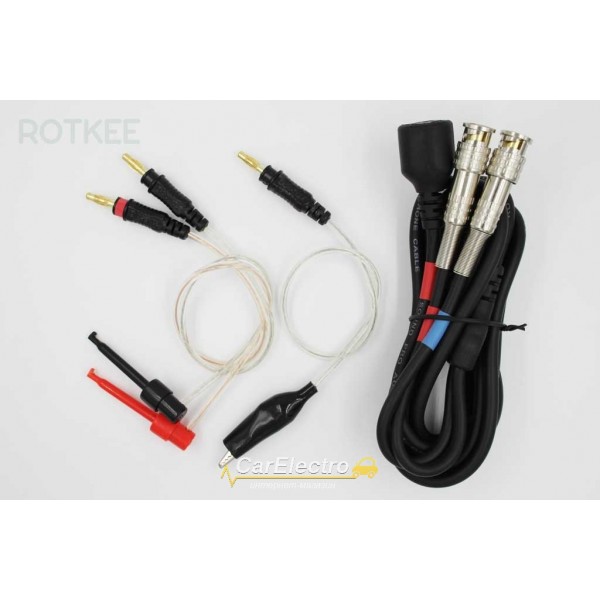

TL-Dif delivery set:

• differential cable 1pc,
• probe with a tester hook - 2 pcs,
• probe with crocodile clip - 1 pc.

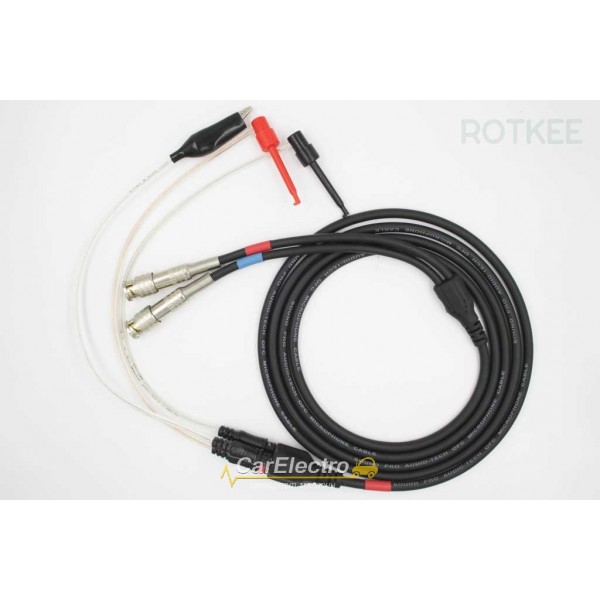

For the manufacture of the TL-DIF probe, a soft microphone cable with a dense shielding braid is used. Measuring probe connectors - "banana" 4 mm. The connector for connecting the probe to the oscilloscope is BNC.

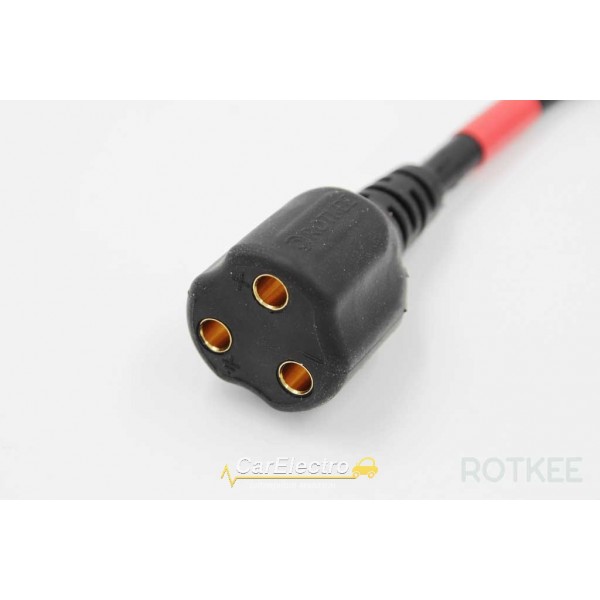

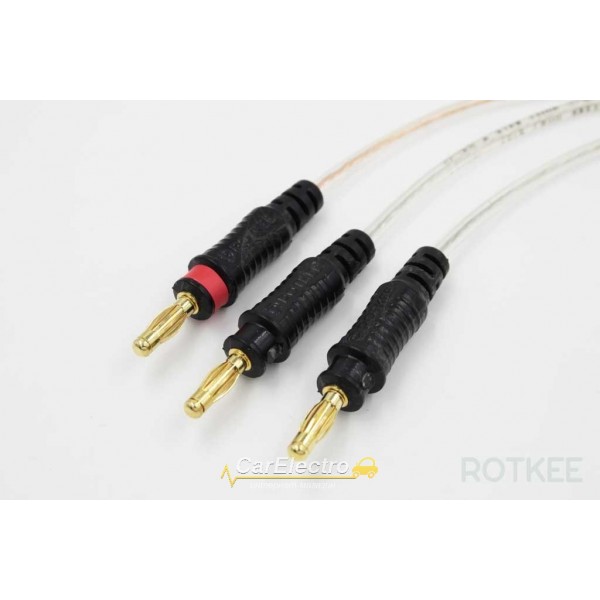

The standard 4mm banana jack allows you to quickly connect/disconnect/change test leads, and is also compatible with test leads from other manufacturers, as well as multimeters. The purpose of each connector is indicated on the end of the case.

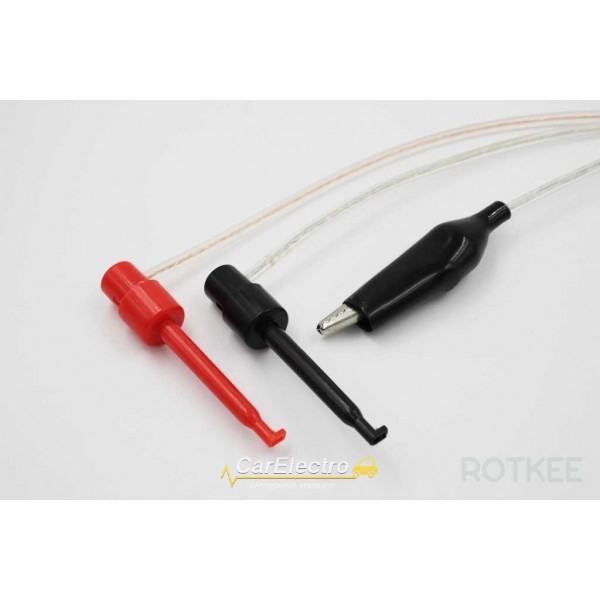

If necessary, the probe with a hook can be replaced with a flexible needle or "crocodile".

Replaceable measuring probes are made of soft cable in PVC insulation. The hook probe is ideal for connecting the oscilloscope to automotive wires, connectors, PCB pins, and other hard-to-reach places.

When developing the measuring probe, special attention was paid to the connection points of the signal cables, as the most susceptible to damage. Inside each connection, a printed circuit board is used, on which the electronic components of the sensor are located, and the board itself carries the power load, and also securely fastens the cable. These monolithic connections prevent the cable from breaking due to accidental jerking, and also significantly extends its service life.
