TL-mlp universal measuring probe

Measuring probe for oscilloscopes. Suitable for MTpro, Disco, Mt4Disco and other oscilloscopes.

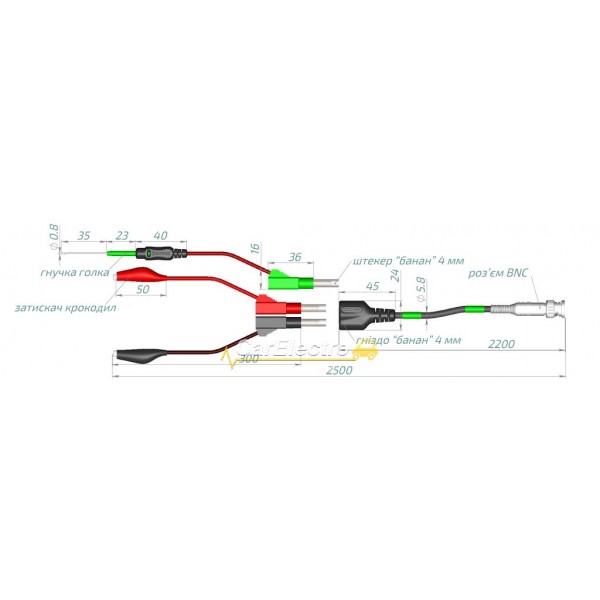

Specifications of TL-mlp:

• Operating voltage - no more than 60V,
• Connector type of interchangeable nozzles - "banana" 4mm,
• Oscilloscope connector - BNC,
• Total length - 2.5m,
• Weight - 0.15 kg.

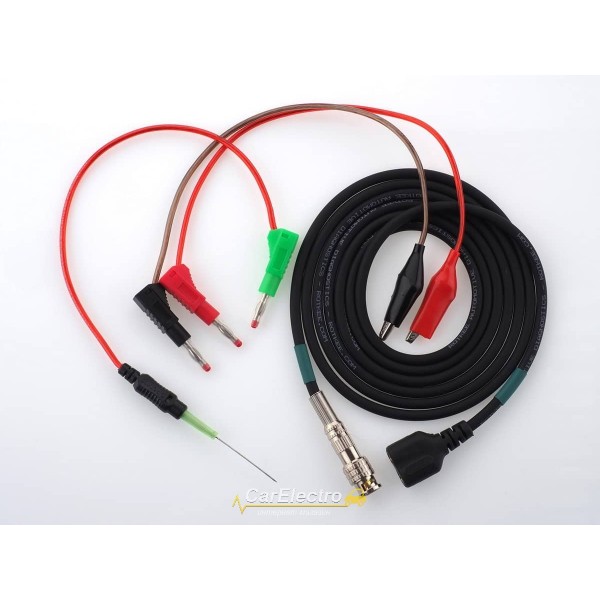

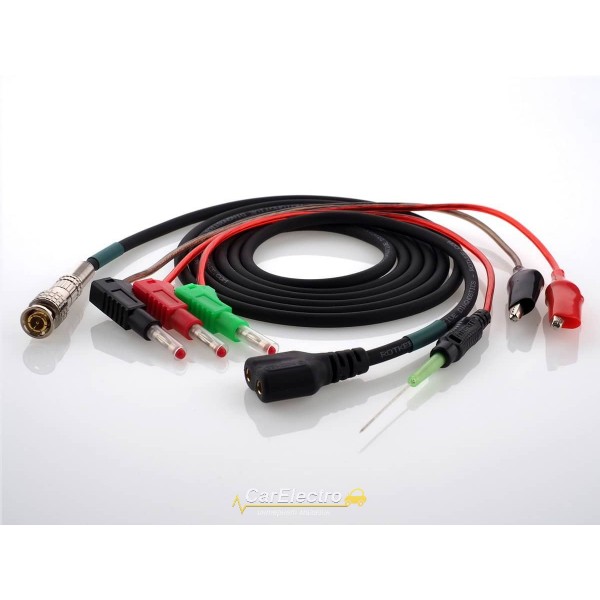

TL-mlp delivery set:

• universal cable 1pc,
• replaceable probe with a flexible needle 1pc,
• replaceable probe with a clip like "crocodile" -2 pieces (1 piece black and 1 piece red).

For the manufacture of this probe, a soft microphone cable with a dense shielding braid is used. Measuring probe connectors - "banana" 4 mm. Connector for connection to the oscilloscope - BNC.

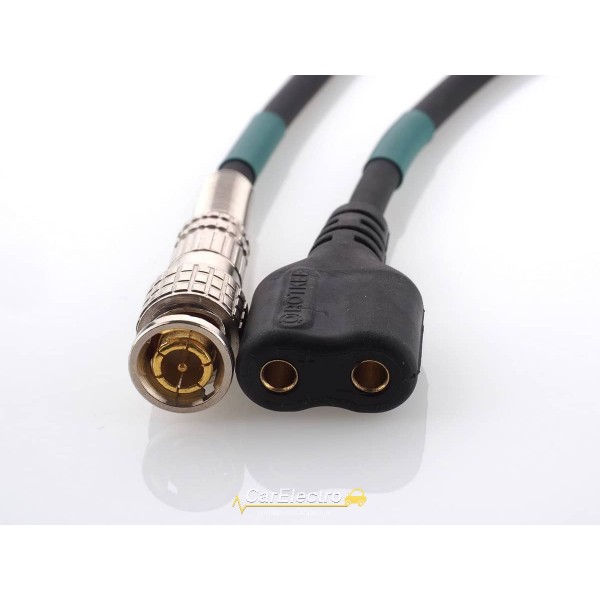

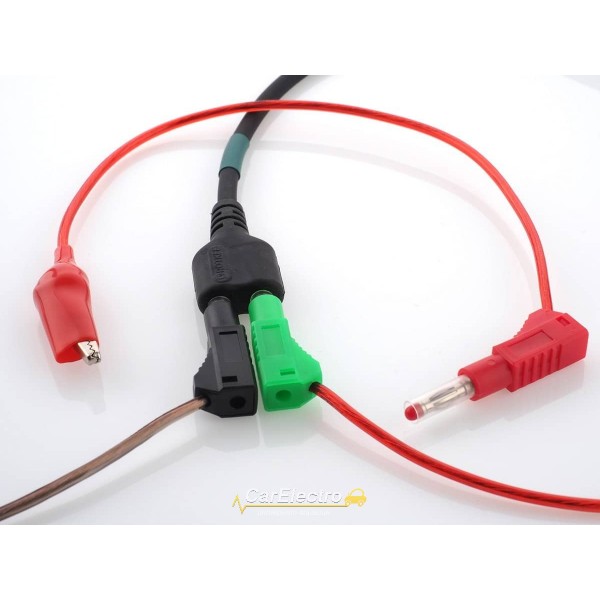

The standard 4mm banana jack allows for quick connection/disconnection/change of test leads, and is also compatible with test leads from other manufacturers and multimeters. The purpose of each connector is indicated on the end of the case.

The probe for the motor tester comes complete with an alligator clip and a flexible needle. If necessary, the kit can be supplemented with tester hooks.

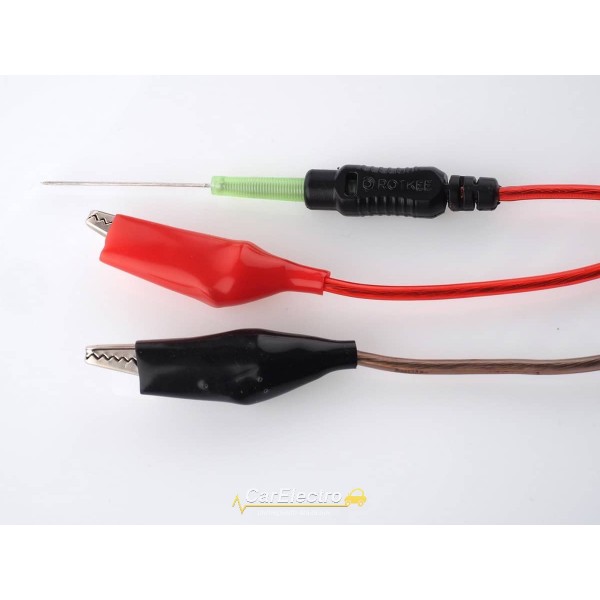

Replaceable measuring probes are made of soft cable in PVC insulation. The flexible stylus probe is ideal for connecting an oscilloscope to car jacks and other hard-to-reach places. A thin needle and a convenient holder allow you to connect to almost any connector without damaging the wiring, without violating the integrity of the circuit and the insulation of the electrical wiring, which will further protect it from premature corrosion. The spring protects the needle from accidental breaking.

When developing the measuring probe, special attention was paid to the connection points of the signal cables, as the most susceptible to damage. Inside each connection, a printed circuit board is used, on which the electronic components of the sensor are located, and the board itself carries the power load, and also securely fastens the cable. These monolithic connections prevent the cable from breaking due to accidental jerking, and also significantly extends its service life.
