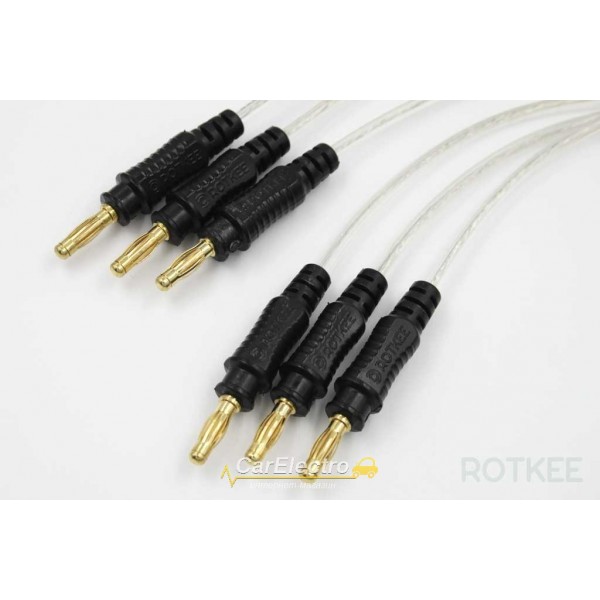

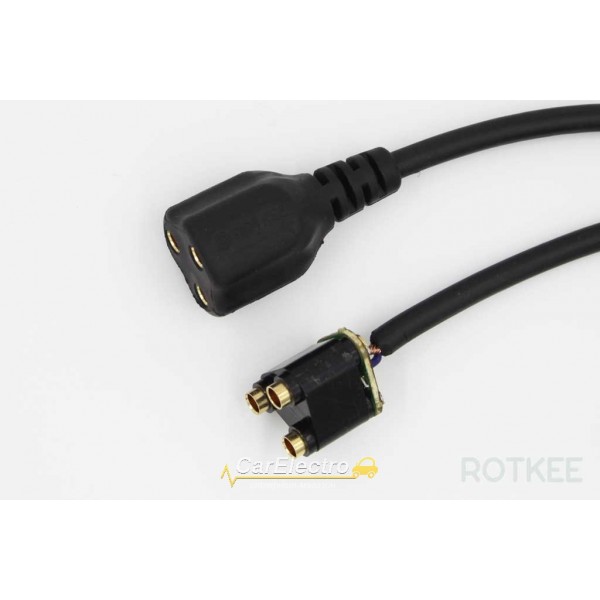

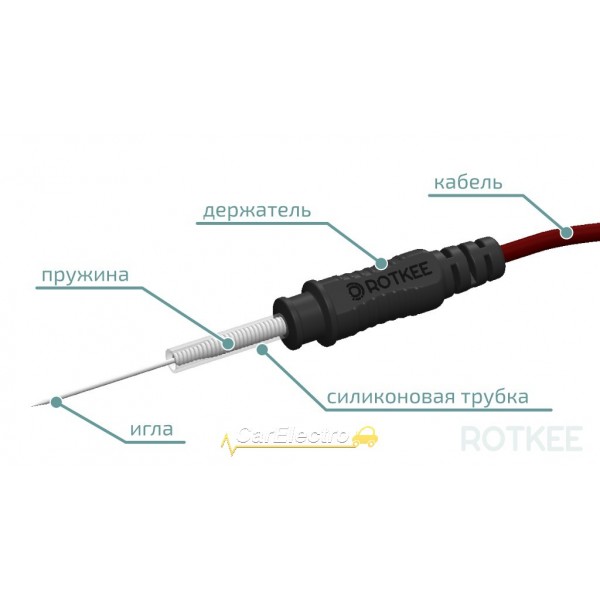

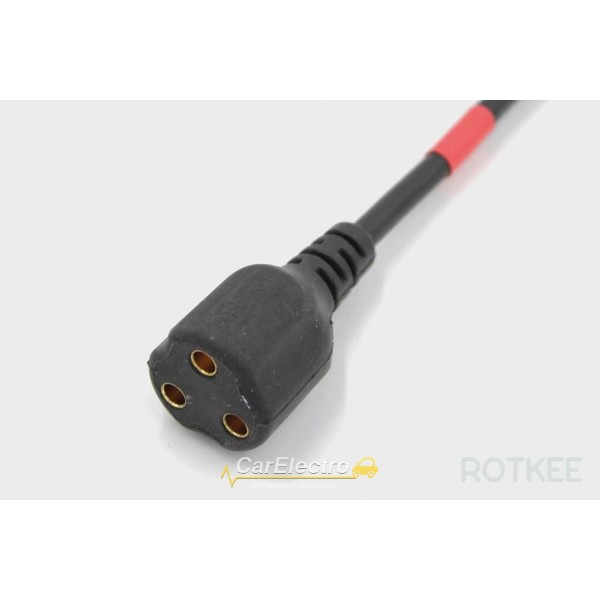

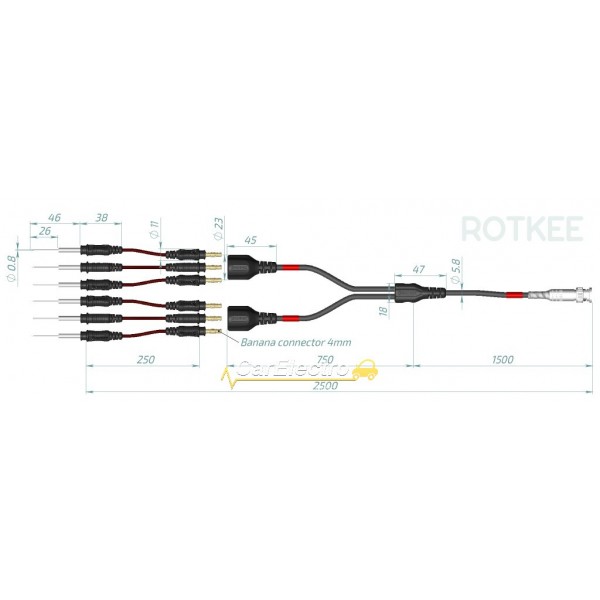

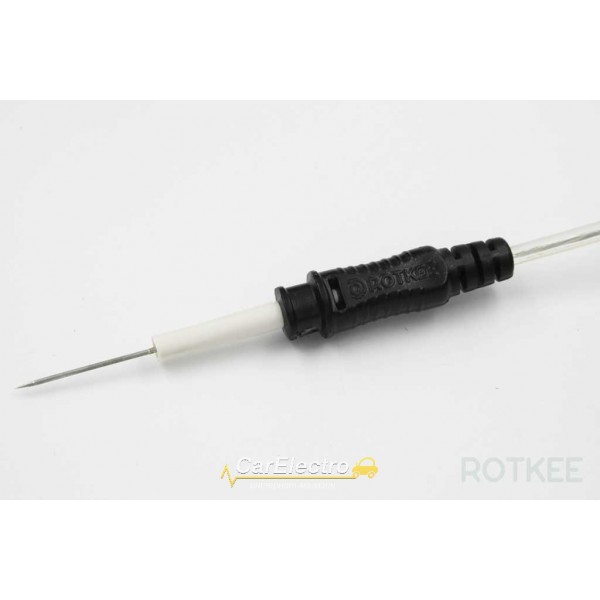

Measuring probe with 6 needles for MTpro

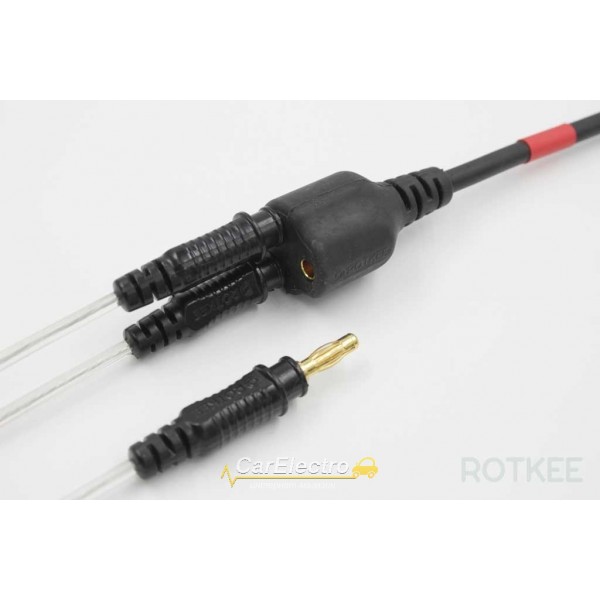

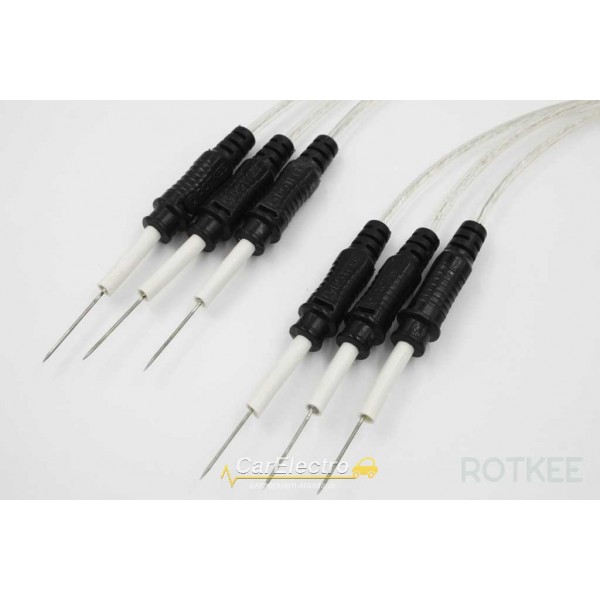

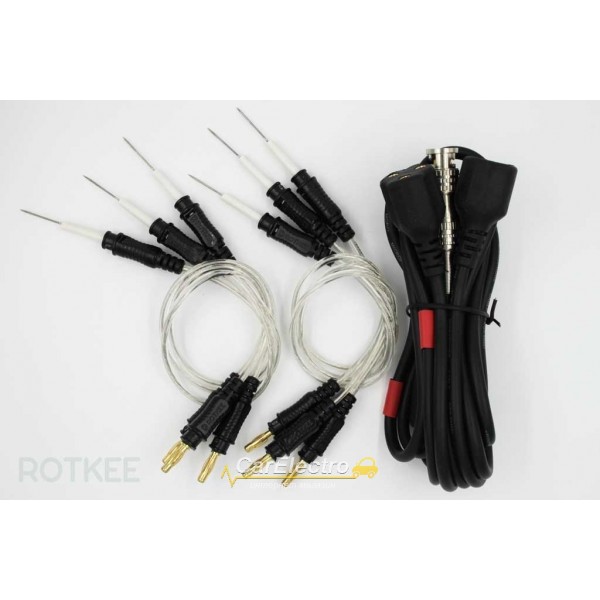

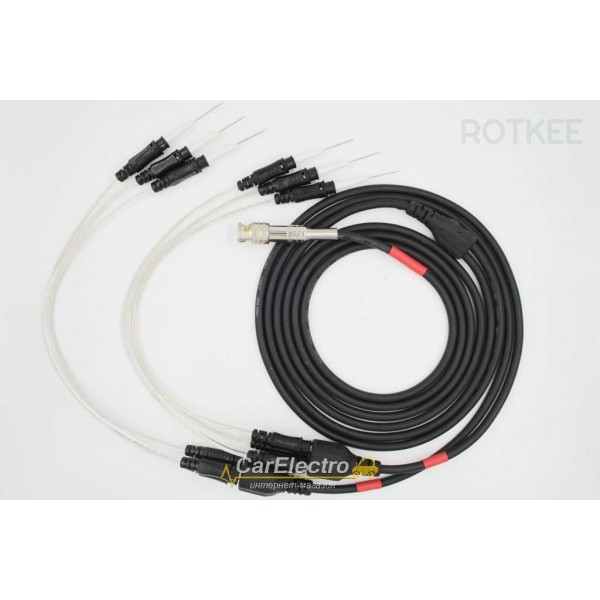

The measuring probe with 6 flexible needles for MTPro is used for the same purposes as the measuring probe with 4 needles. The difference is the ability to test up to 6 injectors / ignition coils simultaneously. Ignition coil control signals, as well as injector control pulses from different cylinders, never appear simultaneously, this allows you to combine them from all measuring probes and get one signal at the output with a series of successive pulses characterizing the system as a whole.

Note!
Probes x4, x6 do not have a separate ground input, so an additional ground wire must be used.

Advice!

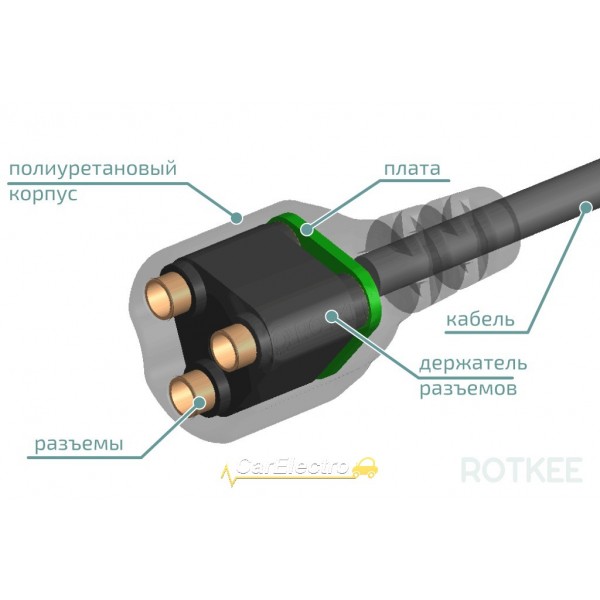

Probes x4, x6 use a resistive signal mixer, so the oscillogram will display not absolute values, but relative ones, which will depend on the on-board voltage of the car at the time of measurement and the number of needles involved. To display real values, it is recommended to use the appropriate settings ("Primary circuit IKZ" - for diagnosing ignition coils, "Injectors" - for diagnosing injectors)

This probe can be used not only with the Mtpro motor tester, but also with any other oscilloscope.
