Device for filling automatic transmission oil pneumatic

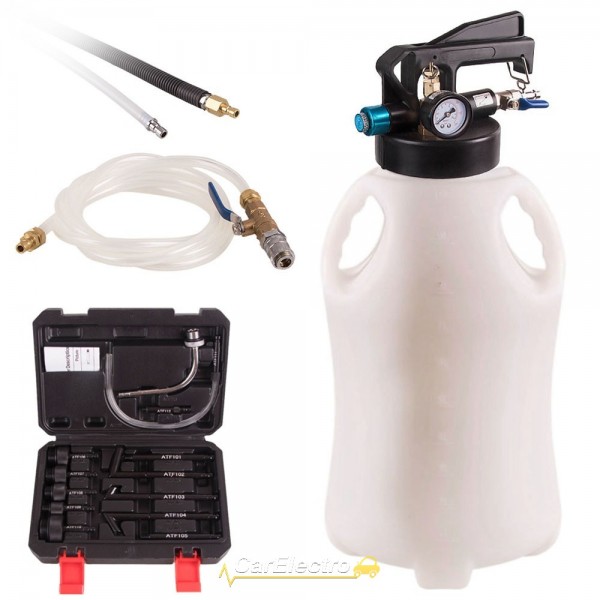

Contents of delivery:

• Tank 10l - 1 pc.

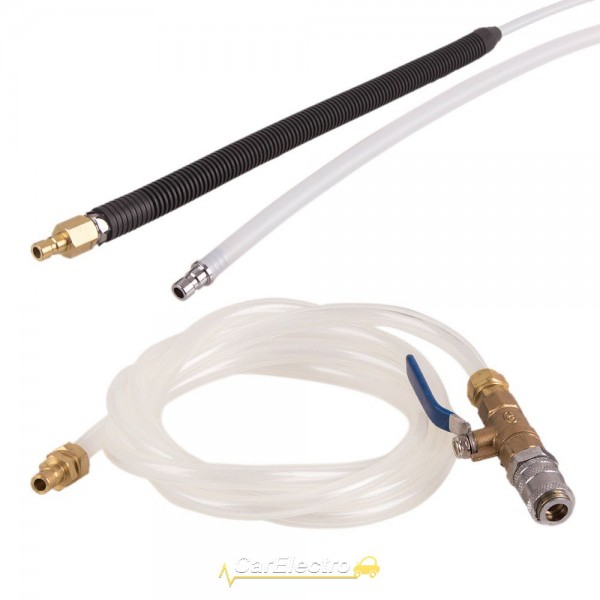

• Polyurethane hose with trigger handle (A) - 1 pc.
• Polyamide hose (B) - 1 pc.
• Polyurethane hose with a flexible rubber dropper (C) - 1 pc.

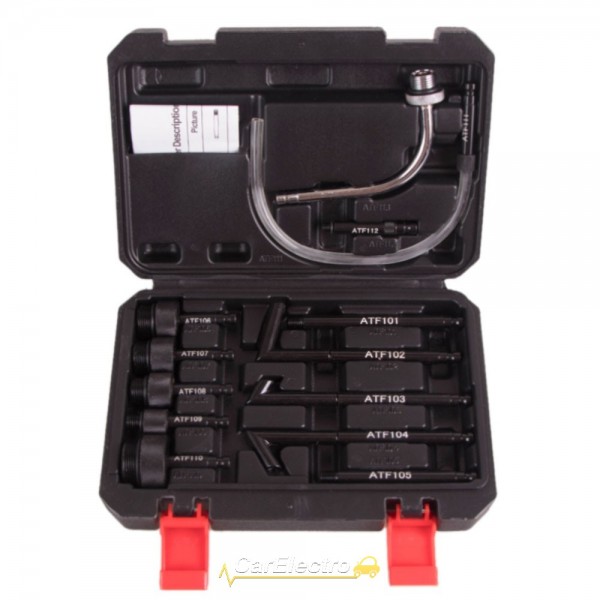

• A set of fittings (8 pcs.) - 1 set.

Application

It is used for fast, safe extraction, transfer and pumping of liquids, prevents contamination of the workplace.

Does not create a spark, one person is enough for work.
The fixture is equipped with a pressure relief valve preset at 43 PSI (3 bar), and excess pressure is released automatically.
Container capacity - 10 l, the container is equipped with a flow meter.
A special valve allows you to switch between operating modes.
The quick-release copper connector greatly simplifies the use of the fixture.

Specifications:

• Hose (A): Ø9.5x2160L.
• Hose (H): Ø10x1500L.
• Hose (C): Ø16.5x700L.
• Air inlet size: 1/4".
• Average air consumption: 56 l/min.
• Temperature: -20° - +60°C.
