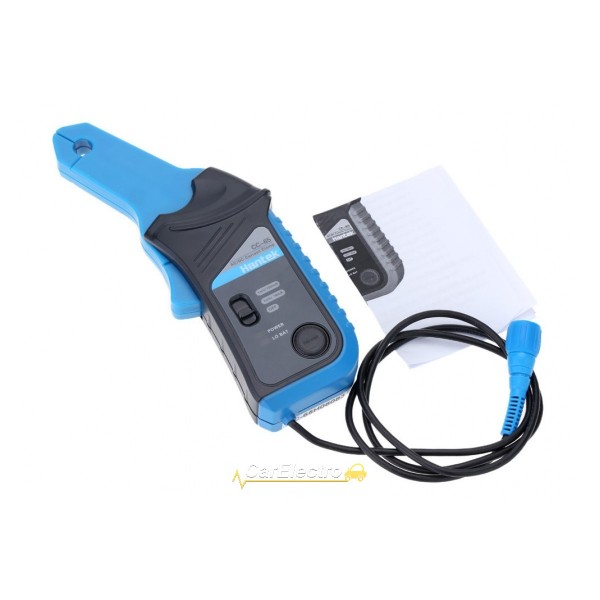

Токоизмерительные клещи Hantek CC-650

This type of current clamp allows non-contact measurements of direct and alternating current, as well as frequency bandwidth. Instrument bandwidth from DC to 20 kHz . The clamp has two conversion ranges 1 mV / 10 mA and 1 mV / 100 mA.

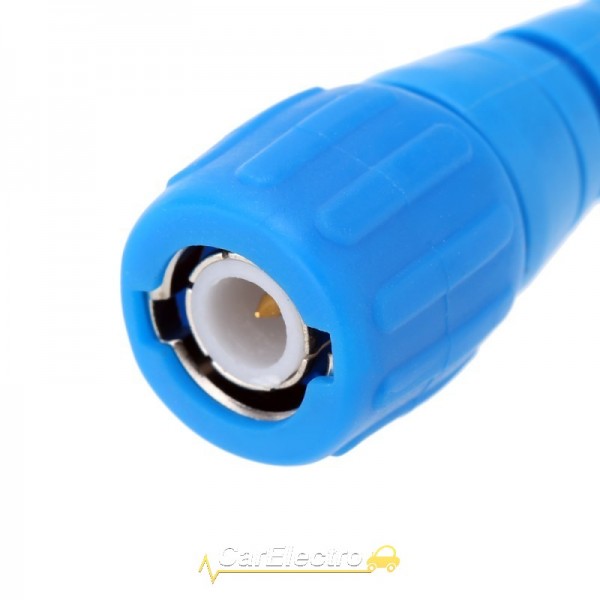

Hantek CC-65 current clamps are connected directly to one of the analog channels of the motor tester via a BNC connector. They can be used in conjunction with motor testers Mt-Pro , Avtoskop , as well as the Disko family of oscilloscopes.

With Hantek CC-65 current clamps it is convenient to check those engine components that have low currents (for example, injector currents; EBN, fuel pump, etc.)

Specifications of current clamp Hantek CC-65:

- Bandwidth: DC - 20 kHz;
- Current measurement range: from 10mA to 65A;
- Diameter of jaws of ticks: 9 mm;
- Operating temperature range: from 0 °С to 50 °С;

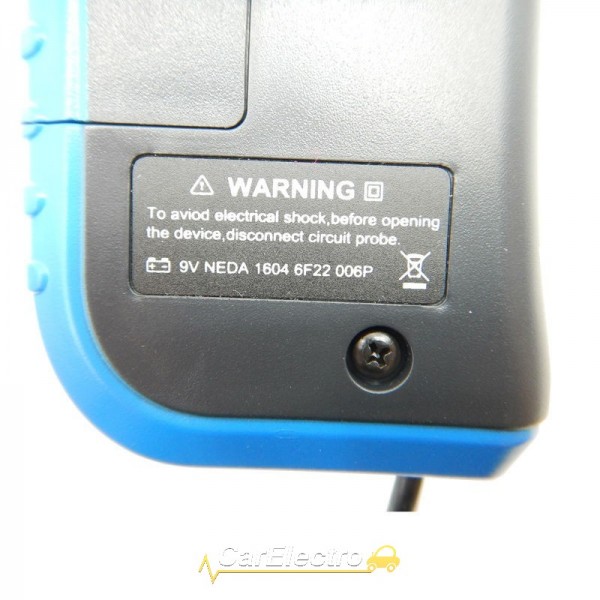

- Power: 9V (IEC 6LR61, NEDA 1604A, 6F22);
- Low battery indicator - present;
- Dimensions / weight: 195 mm x 70 mm x 33 mm / 250 gr.

Measurement error :

DC range:

AC range :
