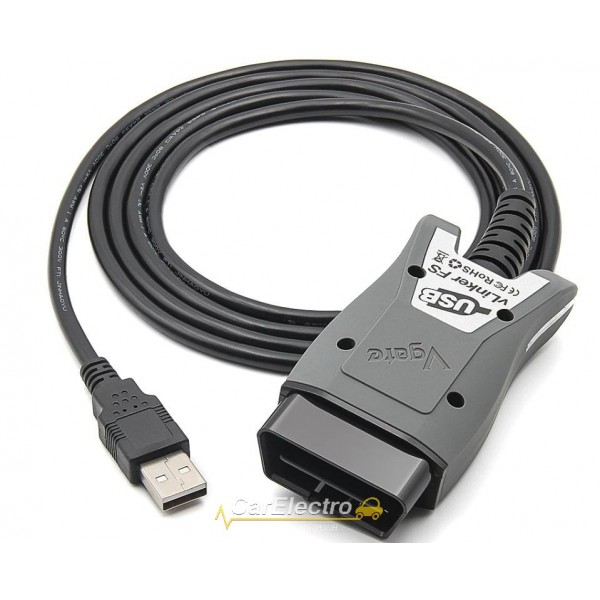

Vgate vLinker FS Diagnostic Adapter for Ford/Mazda

Vgate vLinker FS USB is the recommended USB adapter for FORScan for Windows. Note: This adapter has been specifically designed to work with FORScan. This adapter can be used by both private car owners and professional car services.

Key Features

• Determining the configuration of the vehicle's on-board network
• Read and reset error codes of all modules (see the list of supported modules)
• Reading data from module sensors
• Running Diagnostic Tests
• Performing service procedures
• Configuration and Programming Functions (ForScan for Windows only, Extended License required)

The main features of the adapter:

• Connecting to a PC via USB
• Automatic switching between MS-CAN (medium speed CAN) and HS-CAN (high-speed CAN)
• Support 12V and 24V power supply
• Transfer rate up to 3Mbps
• Support FEPS 18V voltage programming

Supported vehicles:

• Ford, Lincoln, Mercury 1996 - 2022MY (some 1994-1995MY models are also supported). Please note: FORScan may support a limited set of features for all new 2021-2022MY models (work in progress).
• Mazda 1996 - 2022MG up to and including the sixth generation (6G). Attention: Seventh generation (7G) Mazda models (new Mazda 3, CX-30, MX-30, CX-50, etc.) are partially supported or not supported at all!
• Vehicles other than Ford, Mazda, Lincoln, Mercury are not supported!

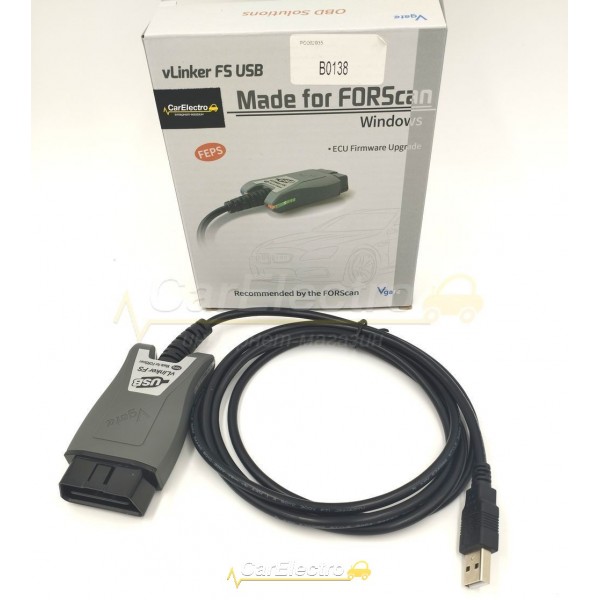

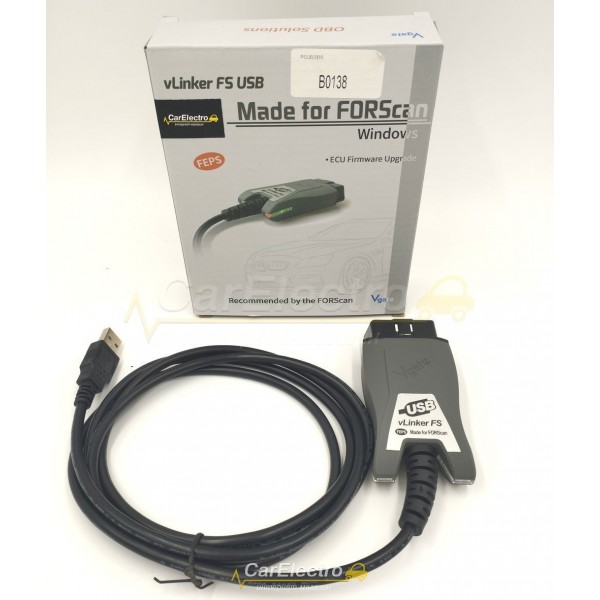

Contents of delivery:

• Vgate vLinker FS USB adapter
• warranty card

Guarantee

Vgate vLinker FS USB adapters are warranted for 6 months.
