Measuring probe TL-AS-light for motor tester USB Autoscope IV

630 hrn.

Are available


(095) 306-85-99
(097) 977-25-30
(068) 719-87-95

TL-AS-LED

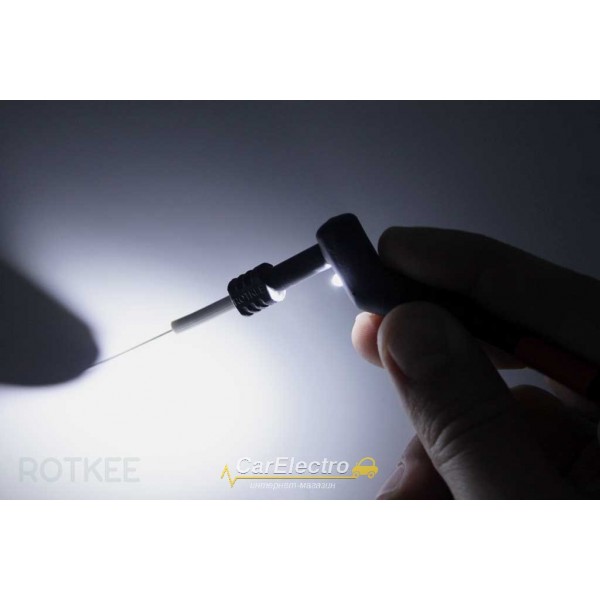

Measuring probe for motor tester USB Autoscope IV. The probe has LED illumination of the working area, as well as two removable flexible needles, with which the main part of the measurements in automotive connectors is performed. The miniature dimensions of the probe and light weight allow you to reach the most inaccessible places.

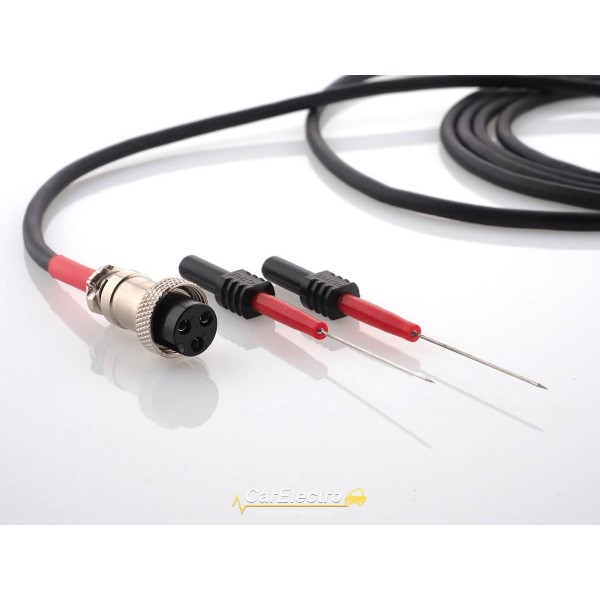

Contents of delivery:

  • Cable MIC323-”banana” – 1 pc.
  • Replaceable probe with a flexible needle - 2 pcs.

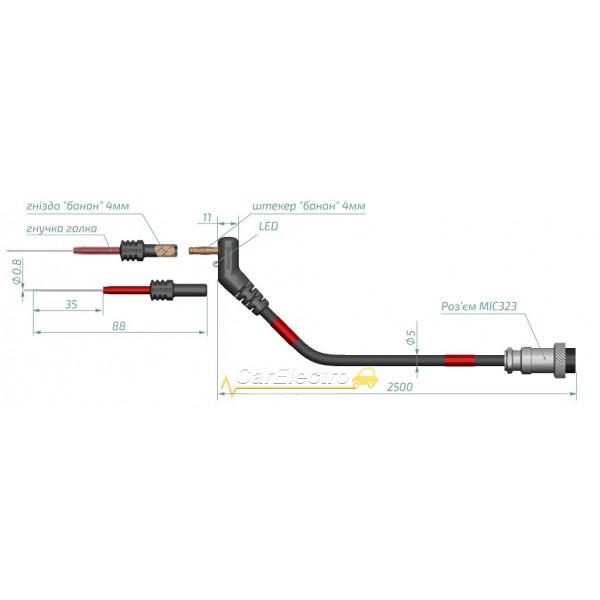

Specifications:

  • Working voltage: no more than 60 V
  • Supply voltage: 5...15 V
  • Supply current: 30mA
  • Connector for interchangeable probes: "banana" 4 mm
  • Total length: 2.5 m
  • Operating temperature range: -20…80℃
  • Weight: 150 g

  • Страна производитель: Украина
